STAINLESS STEEL FORGED FLANGED ASTM A182 Type 01A

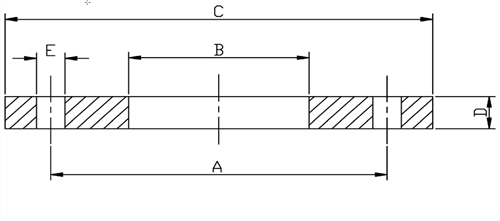

Flat Face " Reduced Thickness" SLIP ON FLANGES PN16 EN1092-1

Suit O/D tube as listed below

PN16 Bored OD Flat Face Reduced

                Grade Grade
                 T304L  T316L
O/D PIPE SIZE DN A B C D E NO.OF HOLE Part number Part number
12.7mm DN15 65 13.9 95 6.35 14 4 n/a 32068
19.05mm DN20 75 20.25 104 6.35 14 4 n/a 32069
25.4mm DN25 85 26.9 115 7.14 14 4 42070 32070
38.1mm DN40 110 39.6 150 8.73 18 4 42071 32071
50.8mm DN50 125 52.3 165 9.52 18 4 42072 32072
53/54mm DN50 125 56 165 9.52 18 4 42076 32060
63.5mm DN65 145 65 185 10.31 18 4 42073 32073
69/70mm DN65 145 72 185 10.31 18 4 42077 32061
76.1mm DN80 160 77.6 200 11.11 18 8 42074 32074
84/85mm DN80 160 86 200 11.11 18 8 42078 32063
101.6mm DN100 180 103.1 220 12.7 18 8 42075 32075
104mm DN100 180 106 220 12.7 18 8 42079 32064
129mm DN125 210 131 250 12.7 18 8 42080 32079
154mm DN150 240 156 285 12.7 22 8 29302 32076
204mm DN200 295 206 340 12.7 22 12 42081 32077
254mm  DN250 355 256 405 12.7 26 12 42082 32078
STAINLESS STEEL FORGED FLANGED ASTM A182 Type 01B

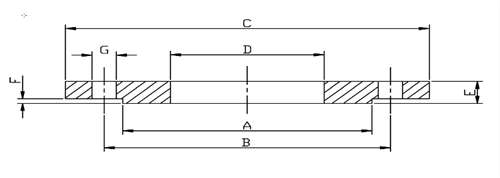

Raised Face  "Full thickness" SLIP ON FLANGES PN16 EN1092-1

Suit O/D tube as listed below

Suit O/D tube as listed below

                    Grade Grade
                     T304L  T316L
O/D PIPE SIZE DN A B C D E F G NO.OF HOLE Part number Part number
25.4mm 25 68 85 115 26.9 16 3 14 4 n/a 29200
38.1mm 40 88 110 150 39.6 18 3 18 4 n/a 29201
50.8mm 50 102 125 165 52.3 19 3 18 4 n/a 29202
63.5mm 65 122 145 185 65 20 3 18 4 n/a 29203
76.1mm 80 138 160 200 77.6 20 3 18 8 n/a 29204
101.6mm 100 158 180 220 103.1 22 3 18 8 n/a 29205
129mm 125 188 210 250 131 22 3 18 8 n/a 29206
154mm 150 212 240 285 156 24 3 22 8 n/a 29207
STAINLESS STEEL FORGED FLANGED ASTM A182 Type 05B

STAINLESS STEEL FORGED FLANGED ASTM A182 Type 05B

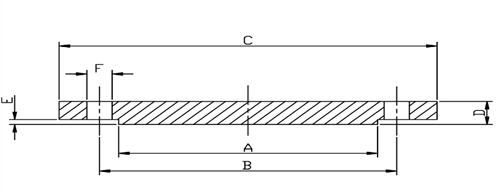

RAISED FACE BLIND FLANGES PN16 EN1092-5

EN1092 PN16 RF Blind

                    Grade Grade
                     T304L  T316L
PIPE SIZE DN A B C D E F Bolt kg each Part number Part number
1/2" 15 45 65 95 16 2 14 4 x M12 0.72 41700 31799
3/4" 20 58 75 105 18 2 14 4 x M12 1.01 41701 31797
1" 25 68 85 115 18 2 14 4 x M12 1.23 41702 31795
11/4" 32 78 100 140 18 2 18 4 x M16 1.8 41703 31801
11/2" 40 88 110 150 18 3 18 4 x M16 2.09 41704 31791
2 50 102 125 165 2 3 18 4 x M16 2.88 41705 31789
21/2" 65 122 145 185 18 3 18 4 x M16 3.66 41706 31791
3" 80 138 160 200 20 3 18 8 x M16 4.77 41707 31785
4" 100 158 180 220 20 3 18 8 x M16 5.65 41708 31786
5" 125 188 210 250 22 3 18 8 x M16 8.42 41709 31802
6" 150 212 240 285 22 3 22 8 x M20 10.4 41710 31787
8" 200 268 295 340 24 3 22 12 x M20 16.2 41711 31788
10" 250 320 355 405 24 3 26 12 x M24 26.6 41712 317792
12" 300 378 410 460 32 4 26 12 x M24 44.2 41713 31796
